Assembly

The image that first springs to most peoples' minds when thinking about automotive factories is one of streams of vehicles pouring off the end of a production line at a rate of several per minute.

That might be reasonably true of some mass-produced car plants today, but back in the '60s, motorcycle assembly at AMC was not quite that hectic.

It might also be a surprise to realise quite how little of the overall factory's floor area was taken up by the assembly operation, about 15% at the Plumstead firm (though that might not have been typical throughout the industry as AMC did manufacture a higher proportion of its parts in-house than most other marques).

Even that relatively small area was not concentrated in one particular place in the factory, with the engine and gearboxes being built in opposite corners of the third floor and the main assembly taking place at the Maxey Road end of the second floor (near to the lift).

View Department Location (main track) View Department Location (engine shop) View Department Location (gearbox shop)

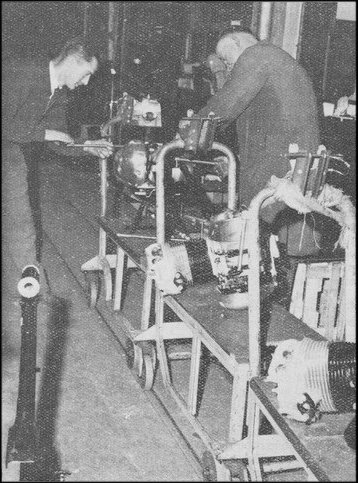

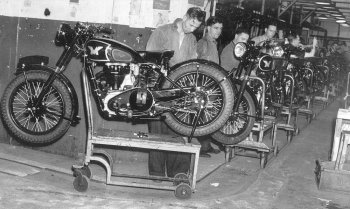

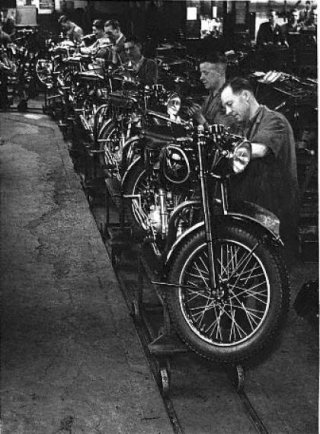

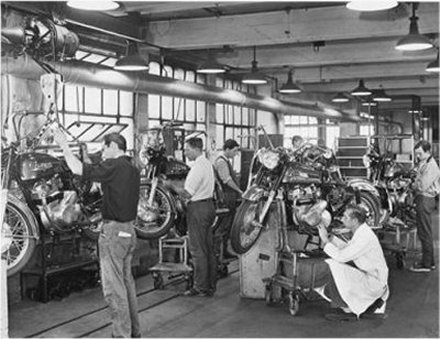

As the photographs show, each motorcycle was built on a small wheeled trolley that ran on a narrow-gauge railway track set into the floor which travelled around the outside walls of the area and terminated near the lift shaft.

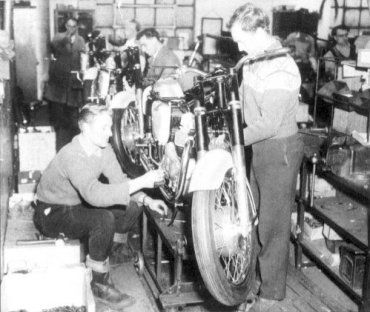

At each build station along the track, storage benches would be positioned, pre-loaded with the appropriate components at that stage for whatever model was being assembled at the time and, once fitted, the trolleys were moved by hand to the next build station by the assembly staff.

View Assembly Shop Layout

In 1962, the Dutch Motor magazine published a series of articles following a tour of the Plumstead Road factory.
You can read their detailed observation of the assembly track in Part 4 of 'This is How Your AJS and Matchless is made'.

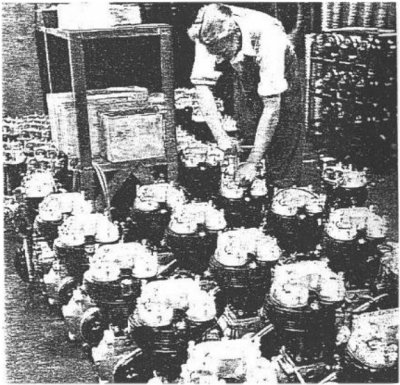

Engines and gearboxes would have already been assembled and delivered from their respective departments, and other major components like wheels and front forks would be built-up in areas adjacent to the track, to be incorporated as sub-assemblies into the final machines.

View Engine Shop Article

When each bike was completed, it would be lifted from its trolley by an electric hoist and placed onto its wheels and be filled with petrol and oil. At this stage a dummy petrol tank (made from the body of a trials toolbox) would sometimes be bolted transversely across the top tube, in place of the normal one, to avoid any damage to its finish during testing.

The machine would then be wheeled into the "run-up" area at the side of the lift to be started for the first time.

Each bike would be taken down in the lift to ground floor level by one of the many testers and driven around the local area for a road test of at least 12 miles, irrespective of the weather.

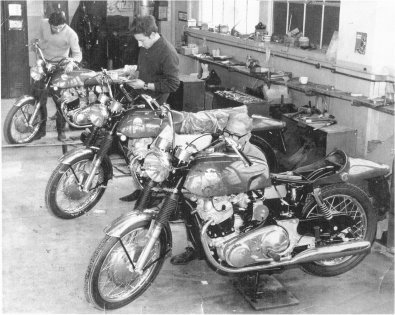

View Department Location (rectification)

Following its return, the machine would be either approved for dispatch or returned to an area of the assembly shop where any corrective work was carried out by a one of a specialist team of "rectifiers" or, if the fault was of a trivial nature, by the tester himself.

As an example of the type of work carried out in the Rectification Department, ex-apprentice Keith Jackson recalls that, during his period of training there, he helped out in the correction of noisy timing gears on the range of small capacity Norton twins (Jubilee, Navigator and Electra models).

These bikes had timing drives consisting of several spur gears on fixed centres, the dimensions of which were all subject to plus and minus limits.

Although each component was made to the tightest possible tolerances, it was inevitable that occasionally the situation would arise where all the gears on one particular engine were on bottom limit, whilst mounted on shafts at top limit centre distances, resulting in a rattle on tick over.

When reported by the testers, these bikes would be handed over to the rectifiers who, according to Keith, "had a stock of all these gears and simply removed the timing covers, found the gears with excessive tooth play and then swapped gears around to find a best fit to quieten them down".

Some jobs were not quite so straightforward though, as Keith recalls working on the Electra model whose frames had the addition of a welded plate structure on their inner sides to make them strong enough for their 400cc engines.
"Removing cylinder heads or barrels on that model was impossible until all the frame bracing places were removed" says Keith, "Not an easy task!"

When the bikes were acceptable, they would be cleaned, have their decals attached and moved across the street to the packing shop.

View Extra Assembly Shop Photos

---

These three Motor Cycle magazine cover pages and sales brochure featured work carried out in the assembly department.
(Click on the images to see enlarged views)

You can view the complete collection on Cover Pages.

The next two group photos were unearthed from the archives with very little identification of the personnel.
Please contact the site if you spot anyone that you recognise.

You can view another Assembly Group photo, taken prior to the 1951 Xmas holiday, on the Scrapbook page.

Main Assembly Personnel

Alf Akenhead
Joe Allen	< 1951 >	Rectifiers-foreman
Stan Bassett
Bert Bennett		Wheel builder
Ted Bennett		Forks
Jeff Boult
John Brenchley		Engine to frame
Ken Bryant		Commando

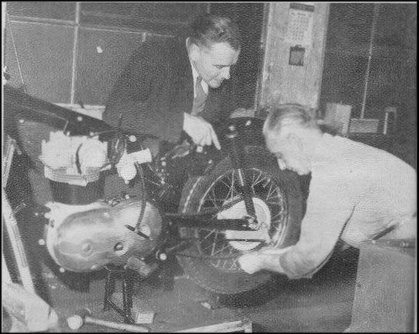

Albert Bull	1917-1968	Rear wheel, chain, mudguard (see newspaper report above)
Chris Callegari		End-of-line
John Carnell
Bill Carpenter		Oil & petrol tanks
Bill Chapman	< 1951 >	2nd I/C
Dennis Coglan/Coghland	< 1951 >	Tyres
Brian Colgate
Ken Conie
Terry Ewings	< 1951 >	Bill Stroud's assistant
John Gardiner		End-of-line
Roy Gilbert
Ken Goddard		Forks
Alf Greyland		End-of-line
Steve Hamer		Runner up
Frank Hewitt
Tim Hipkin
Archie Ilsley		Manager
Dick Jaques	< 1951 >	Rectifier
Tom Jolly
George Keen	< 1951 >	Runner-up (twins)
Roger Ketley
Jimmy King		Rectifiers-engine
Bill Martin	< 1951 >	Runner-up (singles)
Bill Merritt		Front wheel & mudguard
Harry Moore		Wheel builder
Arthur Newson
Doug Nichols		Handlebars
Joe Nicholls	< 1951 >	Runner-up (singles)
Pat O'Leary	1920 - 48+	Wheel builder
Peter Pawson
John Penfold		Finish polish & transfers etc.
Tom Potter
Eric Pratt
Len Rodda		Rectifiers-engine
Len (Alfred Gilbert) Selfe	1939 -69
Alf Simmons
Bob Smith		Rectifiers-engine
E (Tiger) Smith		Wheels
Bill Stubbs
Norman Surtees
Trevor Thomas
Harry Tombs	1918 - 48+	Tyre fitter
Allan Tyrrell	1966 - 69
John Walker		Silencers
Bob Walpole
Eileen Ward
Sid Werner		Rectifiers
Barry Whittley		Runner up
Harry Winch		Runner up







Engine Shop Personnel

Vic Bates
Colin Bennett		Runner up
Charles Wilfred Collinge	1950 - 60 (?)
Roy East
Roy Gilbert		Engine builder
Ron Harold
Bob Hutchings
Fred Neill		Foreman
Gordon Pennington
Eric Porter		Foreman
Tom Potter		Foreman (Engine & gearbox shops)
Jack Pringall
Bob Regan
Pat Smith		Engine Rectifier
Bill 'Alby' Stroud	< 1951 >	Engine Rectifier
Norman Surtees
Mike Wicks







Gearbox Shop Personnel

Nobby Clarke		Chargehand
Norman Crew
John (Jack) Franklin	1929 - early '60s	Gearbox assembler
? Lawrence
Jack Perkins		Manager (+ Two Stroke Shop)
Tom Potter		Foreman (Engine & gearbox shops)
Sam Truscott
